Sunny Wire - Arch (Rect Type)

페이지 정보

orthosun Date17-04-04 10:34 View104

본문

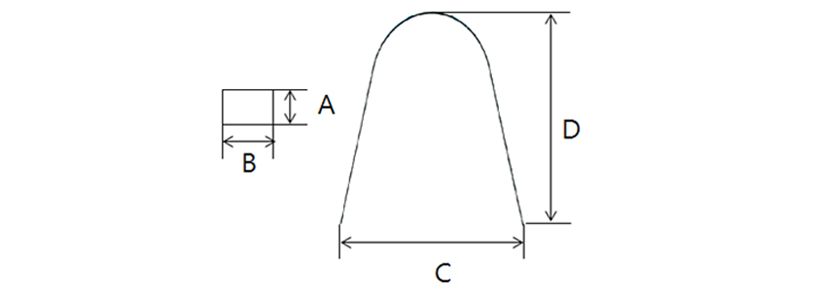

T form

No. Item No. Diameter(Ø) Length(mm) Remarks
A B C D
253 SNAW014025UFT 0.356 0.635 63 64 UPPER
254 SNAW016016UFT 0.406 0.406 63 64
255 SNAW016022UFT 0.406 0.559 63 64
256 SNAW016025UFT 0.406 0.635 63 64
257 SNAW017017UFT 0.432 0.432 63 64
258 SNAW017022UFT 0.432 0.559 63 64
259 SNAW017025UFT 0.432 0.635 63 64
260 SNAW018025UFT 0.457 0.635 63 64
261 SNAW019025UFT 0.483 0.635 63 64
262 SNAW020020UFT 0.508 0.508 63 64
263 SNAW021025UFT 0.533 0.635 63 64
264 SNAW014025LFT 0.356 0.635 55 64 LOWER
265 SNAW016016LFT 0.406 0.406 55 64
266 SNAW016022LFT 0.406 0.559 55 64
267 SNAW016025LFT 0.406 0.635 55 64
268 SNAW017017LFT 0.432 0.432 55 64
269 SNAW017022LFT 0.432 0.559 55 64
270 SNAW017025LFT 0.432 0.635 55 64
271 SNAW018025LFT 0.457 0.635 55 64
272 SNAW019025LFT 0.483 0.635 55 64
273 SNAW020020LFT 0.508 0.508 55 64
274 SNAW021025LFT 0.533 0.635 55 64

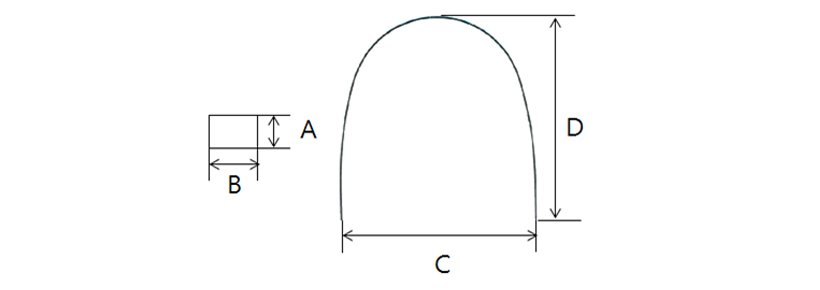

E form

No. Item No. Diameter(Ø) Length(mm) Remarks
A B C D
275 SNAW014025UFE 0.356 0.635 65 70 UPPER
276 SNAW016016UFE 0.406 0.406 65 70
277 SNAW016022UFE 0.406 0.559 65 70
278 SNAW016025UFE 0.406 0.635 65 70
279 SNAW017017UFE 0.432 0.432 65 70
280 SNAW017022UFE 0.432 0.559 65 70
281 SNAW017025UFE 0.432 0.635 65 70
282 SNAW018025UFE 0.457 0.635 65 70
283 SNAW019025UFE 0.483 0.635 65 70
284 SNAW020020UFE 0.508 0.508 65 70
285 SNAW021025UFE 0.533 0.635 65 70
286 SNAW014025LFE 0.356 0.635 57 70 LOWER
287 SNAW016016LFE 0.406 0.406 57 70
288 SNAW016022LFE 0.406 0.559 57 70
289 SNAW016025LFE 0.406 0.635 57 70
290 SNAW017017LFE 0.432 0.432 57 70
291 SNAW017022LFE 0.432 0.559 57 70
292 SNAW017025LFE 0.432 0.635 57 70
293 SNAW018025LFE 0.457 0.635 57 70
294 SNAW019025LFE 0.483 0.635 57 70
295 SNAW020020LFE 0.508 0.508 57 70
296 SNAW021025LFE 0.533 0.635 57 70

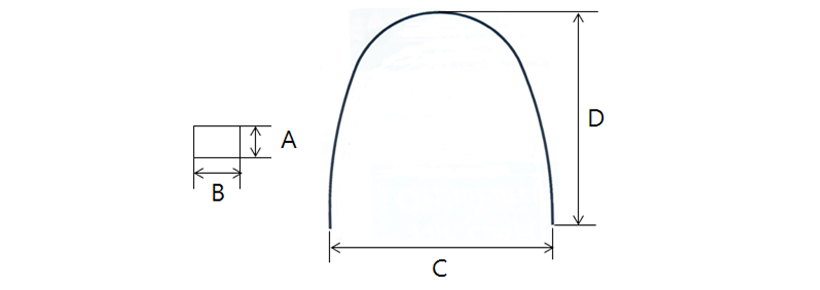

N form

No. Item No. Diameter(Ø) Length(mm) Remarks
A B C D
297 SNAW014025UFN 0.356 0.635 65 68 UPPER
298 SNAW016016UFN 0.406 0.406 65 68
299 SNAW016022UFN 0.406 0.559 65 68
300 SNAW016025UFN 0.406 0.635 65 68
301 SNAW017017UFN 0.432 0.432 65 68
302 SNAW017022UFN 0.432 0.559 65 68
303 SNAW017025UFN 0.432 0.635 65 68
304 SNAW018025UFN 0.457 0.635 65 68
305 SNAW019025UFN 0.483 0.635 65 68
306 SNAW020020UFN 0.508 0.508 65 68
307 SNAW021025UFN 0.533 0.635 65 68
308 SNAW014025LFN 0.356 0.635 57 68 LOWER
309 SNAW016016LFN 0.406 0.406 57 68
310 SNAW016022LFN 0.406 0.559 57 68
311 SNAW016025LFN 0.406 0.635 57 68
312 SNAW017017LFN 0.432 0.432 57 68
313 SNAW017022LFN 0.432 0.559 57 68
314 SNAW017025LFN 0.432 0.635 57 68
315 SNAW018025LFN 0.457 0.635 57 68
316 SNAW019025LFN 0.483 0.635 57 68
317 SNAW020020LFN 0.508 0.508 57 68
318 SNAW021025LFN 0.533 0.635 57 68

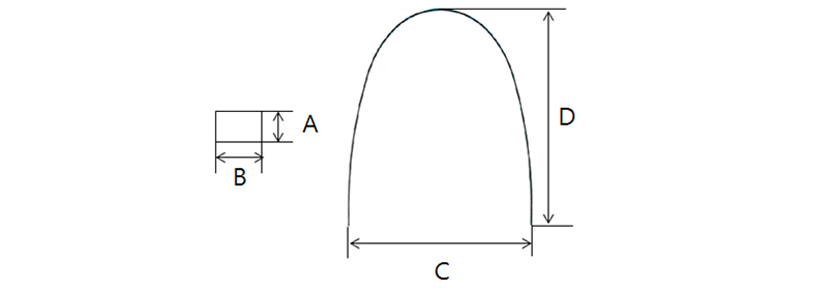

S form

No. Item No. Diameter(Ø) Length(mm) Remarks
A B C D
319 SNAW014025UFS 0.356 0.635 68 63 UPPER
320 SNAW016016UFS 0.406 0.406 68 63
321 SNAW016022UFS 0.406 0.559 68 63
322 SNAW016025UFS 0.406 0.635 68 63
323 SNAW017017UFS 0.432 0.432 68 63
324 SNAW017022UFS 0.432 0.559 68 63
325 SNAW017025UFS 0.432 0.635 68 63
326 SNAW018025UFS 0.457 0.635 68 63
327 SNAW019025UFS 0.483 0.635 68 63
328 SNAW020020UFS 0.508 0.508 68 63
329 SNAW021025UFS 0.533 0.635 68 63
330 SNAW014025LFS 0.356 0.635 60 63 LOWER
331 SNAW016016LFS 0.406 0.406 60 63
332 SNAW016022LFS 0.406 0.559 60 63
333 SNAW016025LFS 0.406 0.635 60 63
334 SNAW017017LFS 0.432 0.432 60 63
335 SNAW017022LFS 0.432 0.559 60 63
336 SNAW017025LFS 0.432 0.635 60 63
337 SNAW018025LFS 0.457 0.635 60 63
338 SNAW019025LFS 0.483 0.635 60 63
339 SNAW020020LFS 0.508 0.508 60 63
340 SNAW021025LFS 0.533 0.635 60 63
