Sunny Wire - Arch(Round Type)

페이지 정보

orthosun Date17-04-04 10:32 View113

본문

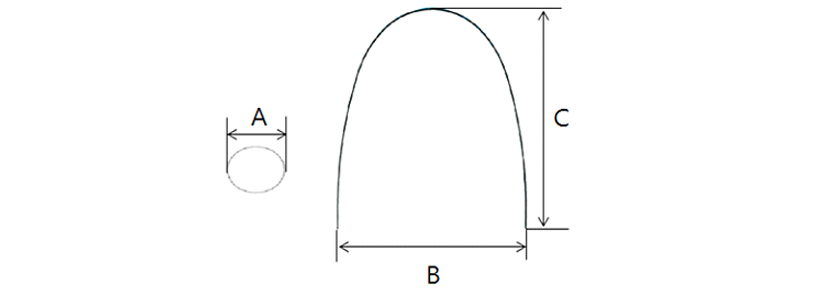

T form

No. Item No. Diameter(Ø) Length(mm) Remarks
A B C
197 SNAW010UFT 0.254 63 64 UPPER
198 SNAW012UFT 0.305 63 64
199 SNAW013UFT 0.330 63 64
200 SNAW014UFT 0.356 63 64
201 SNAW016UFT 0.406 63 64
202 SNAW018UFT 0.457 63 64
203 SNAW020UFT 0.508 63 64
204 SNAW010LFT 0.254 55 64 LOWER
205 SNAW012LFT 0.305 55 64
206 SNAW013LFT 0.305 55 64
207 SNAW014LFT 0.356 55 64
208 SNAW016LFT 0.406 55 64
209 SNAW018LFT 0.457 55 64
210 SNAW020LFT 0.508 55 64

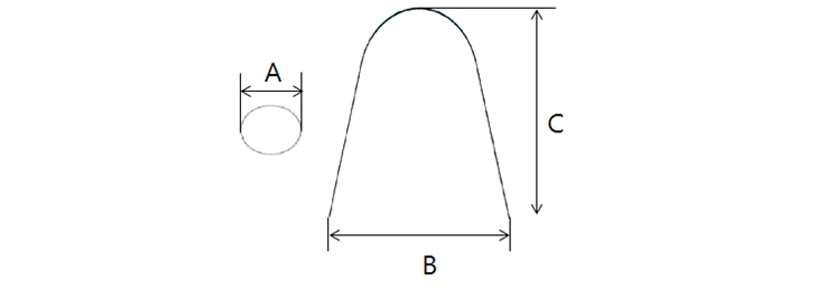

E form

No. Item No. Diameter(Ø) Length(mm) Remarks
A B C
211 SNAW010UFE 0.254 65 70 UPPER
212 SNAW012UFE 0.305 65 70
213 SNAW013UFE 0.330 65 70
214 SNAW014UFE 0.356 65 70
215 SNAW016UFE 0.406 65 70
216 SNAW018UFE 0.457 65 70
217 SNAW020UFE 0.508 65 70
218 SNAW010LFE 0.254 57 70 LOWER
219 SNAW012LFE 0.305 57 70
220 SNAW013LFE 0.330 57 70
221 SNAW014LFE 0.356 57 70
222 SNAW016LFE 0.406 57 70
223 SNAW018LFE 0.457 57 70
224 SNAW020LFE 0.508 57 70

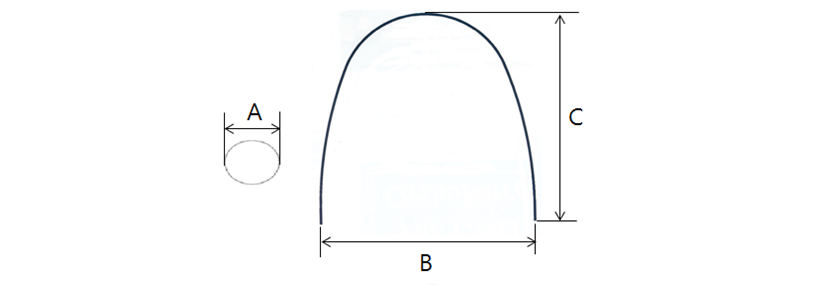

N form

No. Item No. Diameter(Ø) Length(mm) Remarks
A B C
225 SNAW010UFN 0.254 65 68 UPPER
226 SNAW012UFN 0.305 65 68
227 SNAW013UFN 0.330 65 68
228 SNAW014UFN 0.356 65 68
229 SNAW016UFN 0.406 65 68
230 SNAW018UFN 0.457 65 68
231 SNAW020UFN 0.508 65 68
232 SNAW010LFN 0.254 57 68 LOWER
233 SNAW012LFN 0.305 57 68
234 SNAW013LFN 0.330 57 68
235 SNAW014LFN 0.356 57 68
236 SNAW016LFN 0.406 57 68
237 SNAW018LFN 0.457 57 68
238 SNAW020LFN 0.508 57 68

S form

No. Item No. Diameter(Ø) Length(mm) Remarks
A B C
239 SNAW010UFS 0.254 68 63 UPPER
240 SNAW012UFS 0.305 68 63
241 SNAW013UFS 0.330 68 63
242 SNAW014UFS 0.356 68 63
243 SNAW016UFS 0.406 68 63
244 SNAW018UFS 0.457 68 63
245 SNAW020UFS 0.508 68 63
246 SNAW010LFS 0.254 60 63 LOWER
247 SNAW012LFS 0.305 60 63
248 SNAW013LFS 0.330 60 63
249 SNAW014LFS 0.356 60 63
250 SNAW016LFS 0.406 60 63
251 SNAW018LFS 0.457 60 63
252 SNAW020LFS 0.508 60 63
